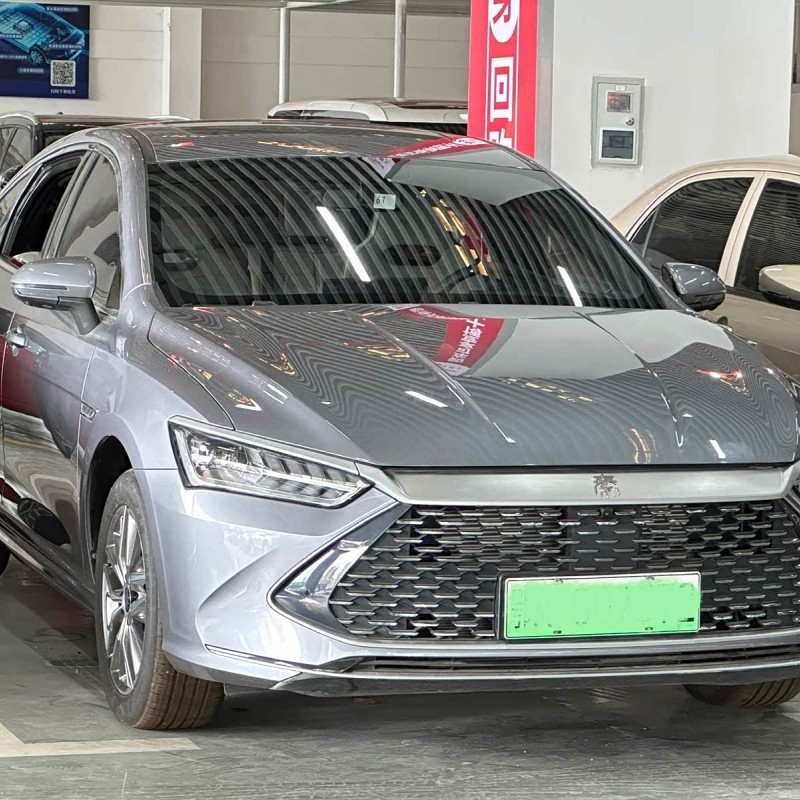

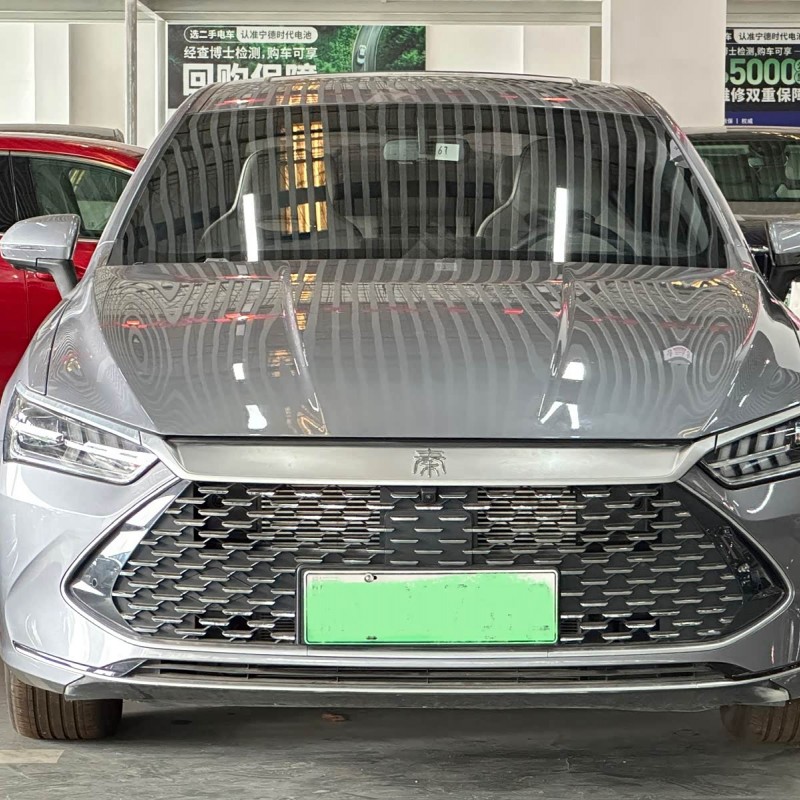

Qin PLUS 2024 Honor Edition DM-i 120KM Excellence Edition
Free Shipping
Ask a Question About This Product
Qin PLUS 2024 Honor Edition DM-i 120KM Excellence Edition
from
$23,464.00
Ex Tax: $23,464.00
Price in reward points: 23464
- Brand: BYD
- Model: Qin PLUS 2024 Honor Edition DM-i 120KM Excellence Edition
- SKU: 55652805
- Location: Wuhan
| Basic parameters | ||
|---|---|---|
| Model name | Qin PLUS 2024 Honor Edition DM-i 120KM Excellence | |
| Manufacturer | BYD | |
| Class | Compact car | |
| Energy type | Plug-in hybrid | |
| Environmental protection standard | National VI | |
| Market launch | 2024.02 | |
| NEDC pure electric cruising range (km) | 120 | |
| WLTC pure electric cruising range (km) | 101 | |
| Fast charging time (hours) | ||
| Slow charging time (hours) - | ||
| Fast charging capacity percentage - | ||
| Maximum power (kW) - | ||
| Maximum torque (N·m) - | ||
| Engine - | 1.5L 110HP L4 class="table-left">Electric Motor (Ps) | 197 |
| Gearbox | E-CVT Continuously Variable Transmission | |
| Length*Width*Height (mm) | 4765*1837*1495 | |
| Body Structure | 4-door, 5-seater sedan | |
| Maximum Speed (km/h) | 185 | |
| Official 0-100km/h acceleration (s) | 7.3 | |
| WLTC comprehensive fuel consumption (L/100km) | 1.58 | |
| Electric energy equivalent fuel consumption (L/100km) | 1.64 | |
| Vehicle Warranty | Six years or 150,000 kilometers | |
| First owner warranty policy | - | |
| Body | |
|---|---|
| Length (mm) | 4765 |
| Width (mm) | 1837 |
| Height (mm) | 1495 |
| Wheelbase (mm) | 2718 |
| Front wheelbase (mm) | 1580 |
| Rear track (mm) | 1590 |
| Approach angle (°) | 13 |
| Departure angle (°) | 14 |
| Minimum turning radius (m) | 5.5 |
| Body structure | Sedan |
| Door opening method | Hinge door |
| Number of doors (pieces) | 4 |
| Number of seats (pieces) | 5 |
| Fuel tank capacity (L) | 48 |

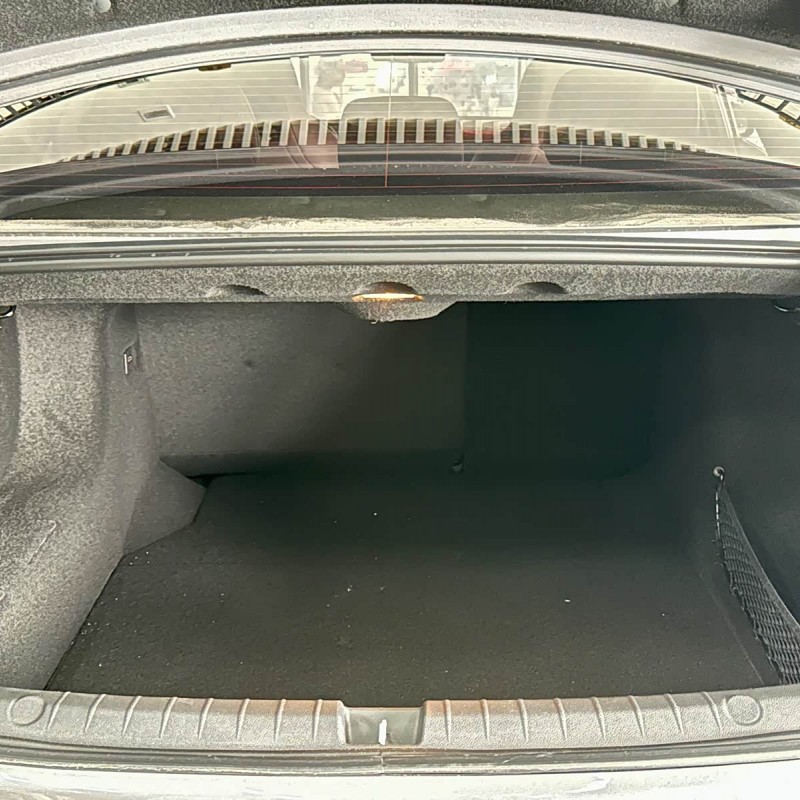

| Trunk volume (L) | - |
| Curb weight (kg) | 1620 |
| Engine model | BYD472QA |
| Displacement (mL) | 1498 |
| Displacement (L) | 1.5 |
| Intake form | Naturally aspirated |
| Engine layout | Transverse |
| Cylinder arrangement | L |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Valve train | DOHC |
| Maximum horsepower (Ps) | 110 |
| Maximum power (kW) | 81 |
| Maximum power speed (rpm) | - |
| Maximum torque (N·m) | 135 |
| Maximum torque speed (rpm) | - |
| Maximum net power (kW) | - |
| Fuel type | Plug-in hybrid |
| Fuel grade | 92 |
| Fuel supply method | Multi-point electronic injection |
| Cylinder head material | Aluminum alloy |
| Cylinder block material | Aluminum alloy |
| Environmental protection standard | National VI |
| Motor | |
|---|---|
| Motor type | Permanent magnet/synchronous |
| Total motor power (kW) | 145 |
| Total motor power (Ps) | - |
| Total motor torque (N·m) | 325 |
| Maximum power of front motor (kW) | 145 |
| Maximum torque of front motor (N·m) | 325 |
| Number of drive motors | Single motor |
| Motor layout | Front |
| Battery type | Lithium iron phosphate battery |
| Battery cell brand | Fudi |
| Battery cooling method | Direct cooling |
| NEDC pure electric cruising range (km) | 120 |
| WLTC pure electric cruising range (km) | 101 |
| Battery energy (kWh) | 18.32 |
| Power consumption per 100 kilometers (kWh/100km) | 14.5 |
| Battery pack warranty | |
| Fast charging function | Support |
| Fast charging power (kW) | 17 |
| Fast charging time (hours) | - |
| Slow charging time (hours) | - |
| Fast charging capacity (%) | - |
| Gearbox | |
|---|---|
| Number of gears | Continuously variable transmission |
| Gearbox type | Electronic continuously variable transmission (E-CVT) |
| Abbreviation | E-CVT continuously variable transmission |
| Chassis steering | |
|---|---|
| Drive mode | Front engine, front drive |
| Four-wheel drive type | - |
| Central differential structure | - |
| Front suspension type | McPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension |
| Power-steering type | Electric power-steering |
| Body structure | Load-bearing |
| Wheel brakes | |
|---|---|
| Front brake type | Ventilated disc |
| Rear brake type | Disc |
| Parking brake type | Electronic parking |

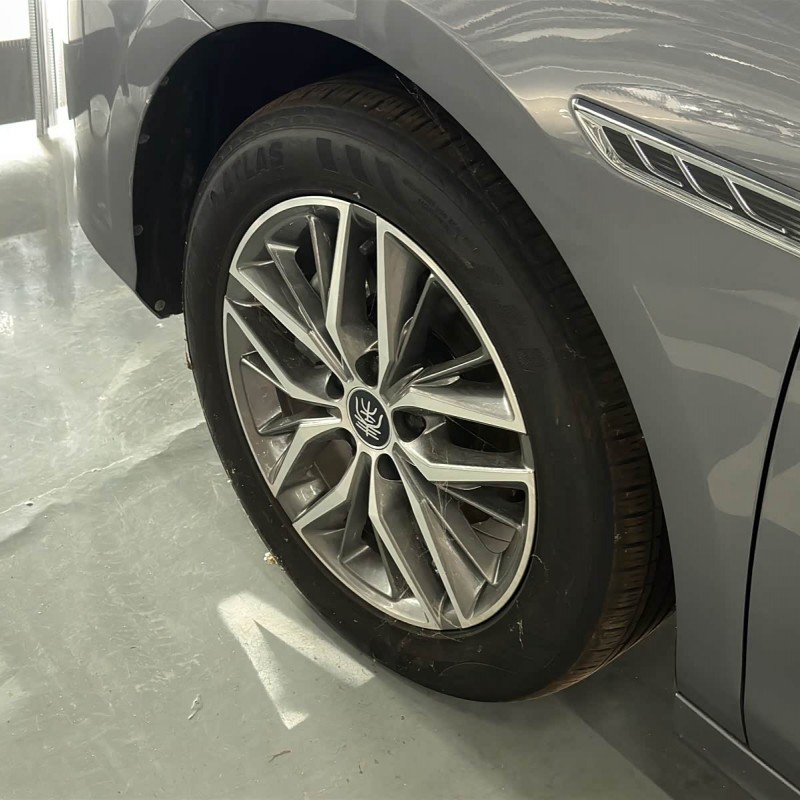

| Front tire specifications | 215/55 R17 |
| Rear tire specifications | 215/55 R17 |
| Spare tire specifications | Tire repair tools |
| Passive safety | |
|---|---|
| Driver/passenger airbags | Driver● / Passenger● |
| Front/rear side airbags | Front● / Rear- |
| Front/Rear Head Airbags (Air Curtain) | Front● / Rear● |
| Active Safety | |
|---|---|
| ABS Anti-lock Braking | ● |
| Brake force distribution (EBD/CBC, etc.) | ● |
| Brake Assist (EBA/BAS/BA, etc.) | ● |
| Traction Control (ASR/TCS/TRC, etc.) | ● |
| Vehicle Stability Control (ESC/ESP/DSC, etc.) | ● |
| Tire Pressure Monitoring Function | ●Tire Pressure Display |
| Seat Belt Unfastened Reminder | ●Front Row |
| ISOFIX child seat interface | ● |
| Lane departure warning system | ● |
| Active braking / active safety system | ● |
| Fatigue driving reminder | - |
| Forward collision warning | ● |
| Rear collision warning | ● |
| Low Speed Warning | ● |
| Built-in Driving Recorder | ● |
| Driving Control | |
|---|---|
| Driving Mode Switch | ●Sport ●Economy ●Standard/Comfort ●Snow |
| Energy Recovery System | ● |
| Automatic parking | ● |
| Hill start assist | ● |
| Driving hardware | |
|---|---|
| Front/rear parking radar | Front● / rear● |

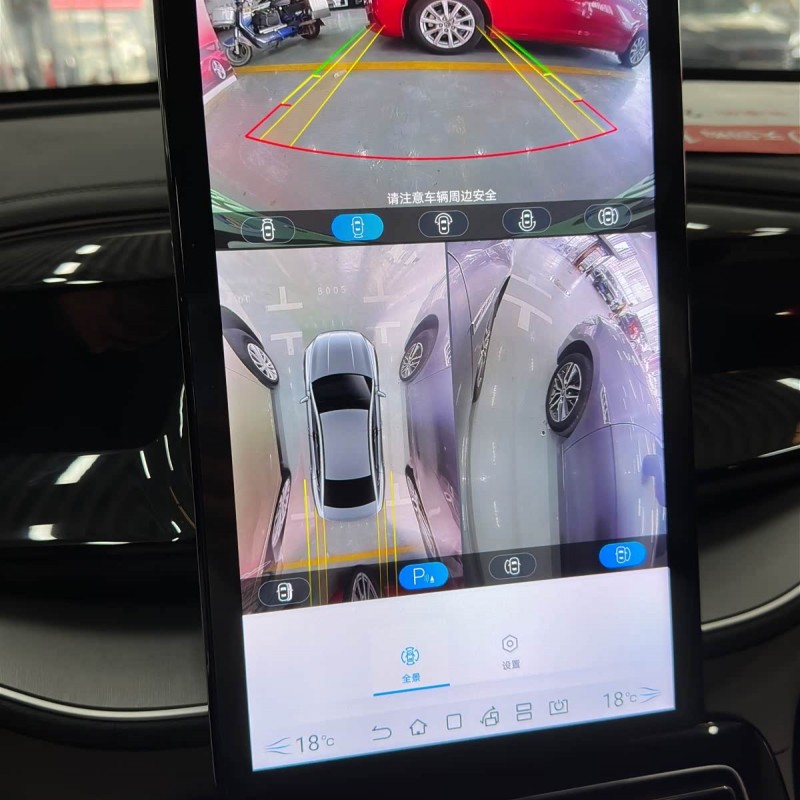

| Driving assistance image | ●360 degree panoramic image |
| Number of cameras | ●6 |
| Number of ultrasonic radars | ●6 |
| Number of millimeter-wave radars | ●1 |
| Driving functions | |
|---|---|
| Cruise system | ●Full-speed adaptive cruise |
| Assisted driving system | ●DiPilot |
| Assisted driving level | ●L2 |
| Reversing vehicle side warning system | ● |
| Satellite navigation system | ● |
| Navigation traffic information display | ● |
| Lane change assistance | ● |
| Lane keeping assist system | ● |
| Lane Centering | ● |
| Road Traffic Sign Recognition | ● |
| Remote Parking | ● |
| Appearance/Anti-theft | |
|---|---|
| Wheel Material | ●Aluminum Alloy |
| Electric trunk | - |
| Engine electronic anti-theft | ● |
| Central locking system in the car | ● |
| Key type | ●Remote control key ●Bluetooth key ●NFC/RFID key |
| Keyless start system | ● |
| Keyless entry function | ●Front row |
| Remote start function | ● |
| Battery preheating | ● |
| External discharge | ● |
| Exterior lights | ||
|---|---|---|
| Low beam light source | ●LED | |
| Low beam light source | ● class="table-left">High beam light source | ●LED |
| LED daytime running lights | ● | |
| Adaptive high and low beam | ● | |
| Automatic headlights | ● | |
| Front fog lights | - | |
| Height-adjustable headlights | ● | |
| Headlight Delay Off | ● | |
| Sunroof/Glass | |
|---|---|
| Sunroof Type | ●Electric Sunroof |

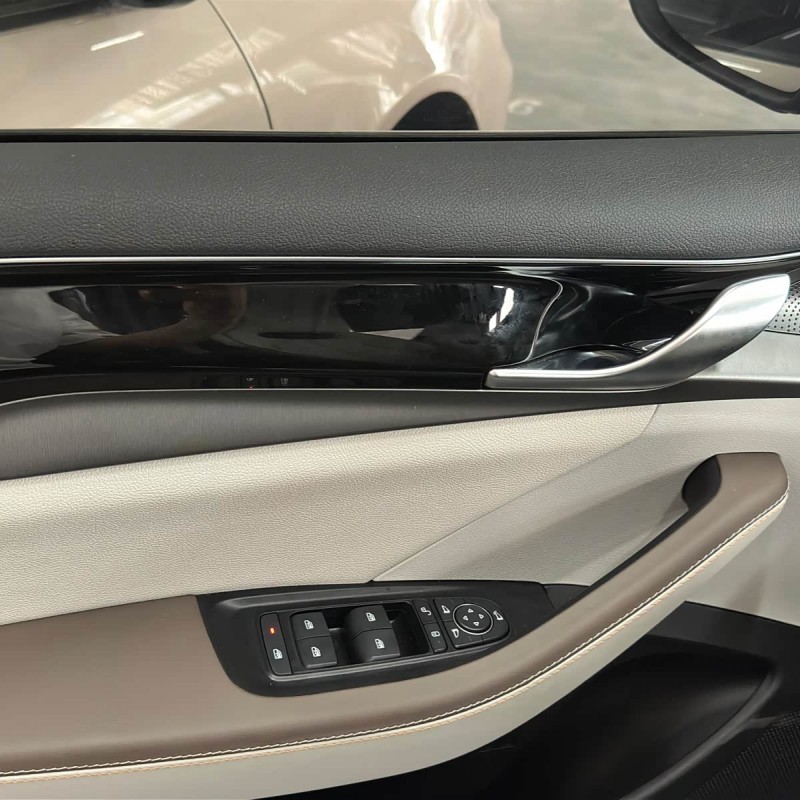

| Front/Rear Electric Windows | Front● / Rear● |
| Window One-button Lift Function | ●Whole Vehicle |
| Window anti-pinch function | ● |
| Interior makeup mirror | ●Driver's seat ●Passenger seat |
| Rear wiper | - |
| Sensing wiper function | - |
| Exterior rearview mirror | |
|---|---|
| Exterior rearview mirror function | ●Electric adjustment ●Electric folding ●Rearview mirror heating ●Automatic folding when locking the car |
| Screen/System | |
|---|---|

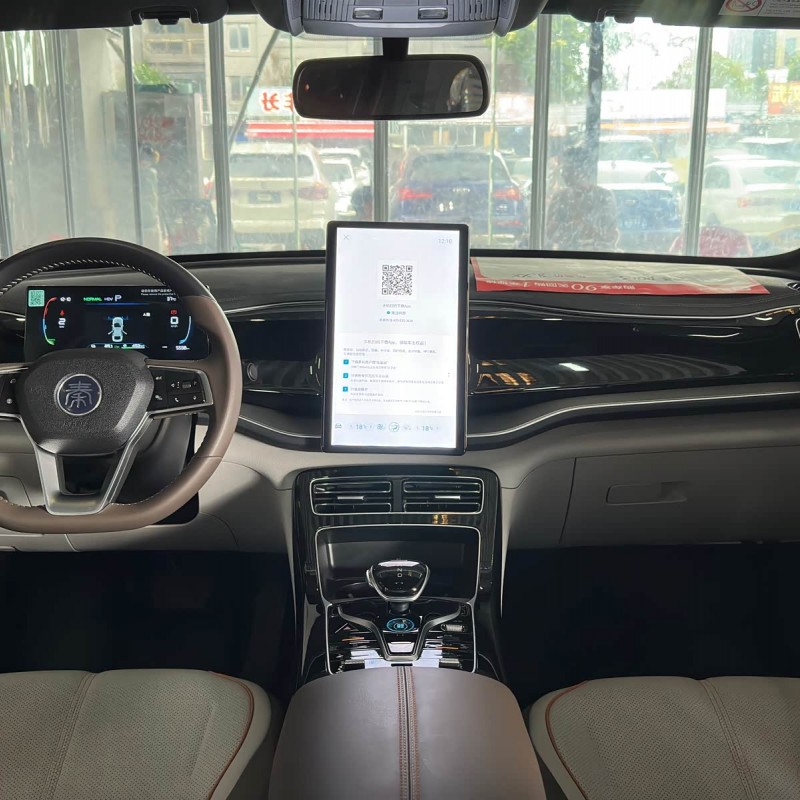

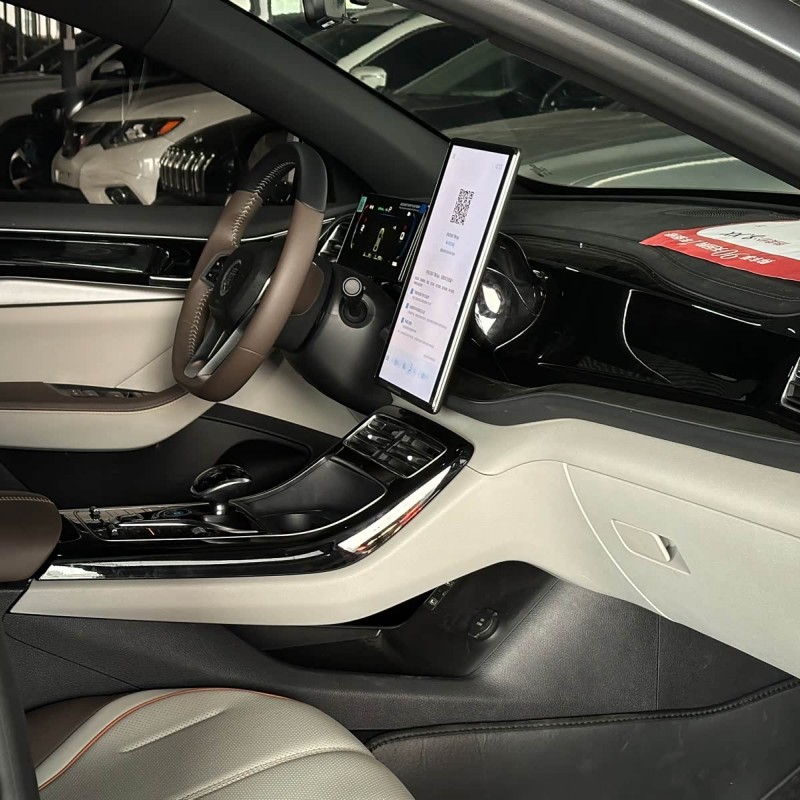

| Central control color screen | ●Touch LCD screen |
| Central control screen size | ●12.8 inches |
| Rotating large screen | ● |
| Bluetooth/Car Phone | ● |
| Mobile Phone Interconnection/Mapping | - |
| Voice Recognition Control System | ●Multimedia System ●Navigation ●Phone ●Air Conditioning ●Sunroof |
| Voice Assistant Wake-up Word | ●Hello, Xiaodi |
| Voice Wake-up Word-Free | ● |
| Voice Wake-up Recognition by Region | ●Dual Area |
| Continuous Voice Recognition | ● |
| App Store | ● |
| In-Vehicle Intelligent System | ●DiLink |
| Vehicle System Memory (GB) | ●6 |
| Vehicle System Storage (GB) | ●64 |
| Intelligent configuration | |
|---|---|
| Internet of Vehicles | ● |
| 4G/5G network | ●4G |
| OTA upgrade | ● |
| Wi-Fi hotspot | ● |
| Mobile APP remote function | ●Door control ●Vehicle start ●Light control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/search ●Owner service (find charging piles, gas stations, parking lots, etc.) ●Appointment for maintenance/repair |
| Car KTV | ● |

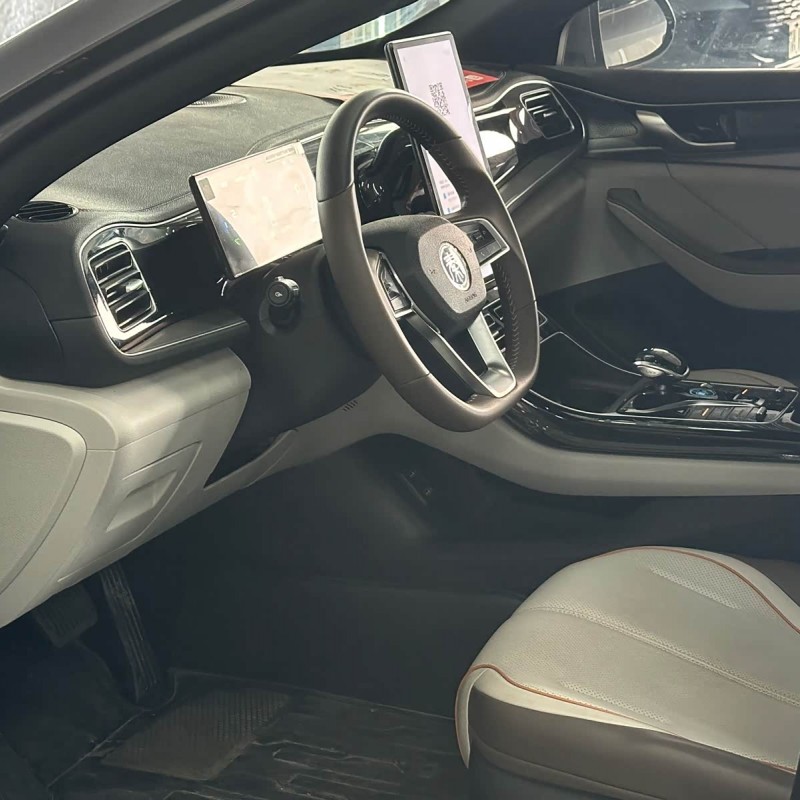

| Steering wheel/interior rearview mirror | |
|---|---|

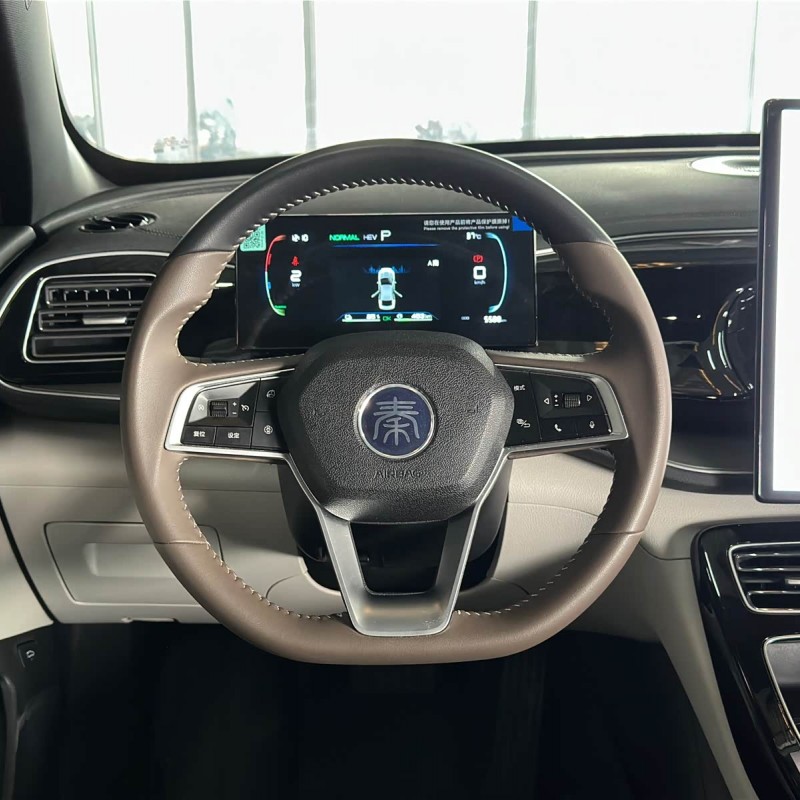

| Steering wheel material | ●Leather |
| Steering wheel position adjustment | ●Manual up and down + front and back adjustment |

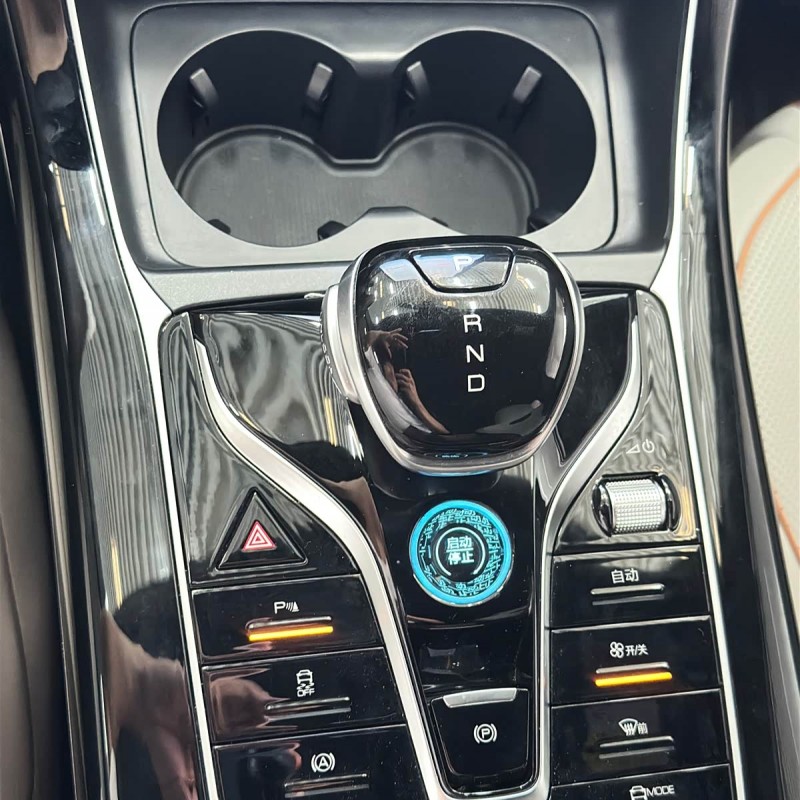

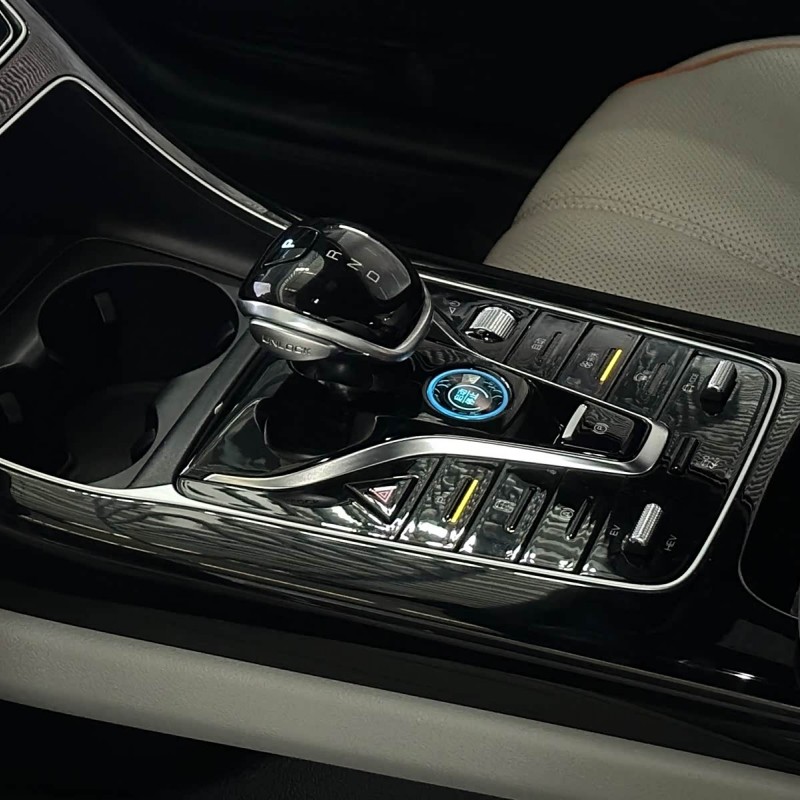

| Gear shifting mode | ●Electronic gear shifting |
| Multi-function steering wheel | ● |
| Steering wheel heating | - |
| Steering wheel memory | - |
| On-board computer display screen | ●Color |
| Full LCD instrument panel | - |

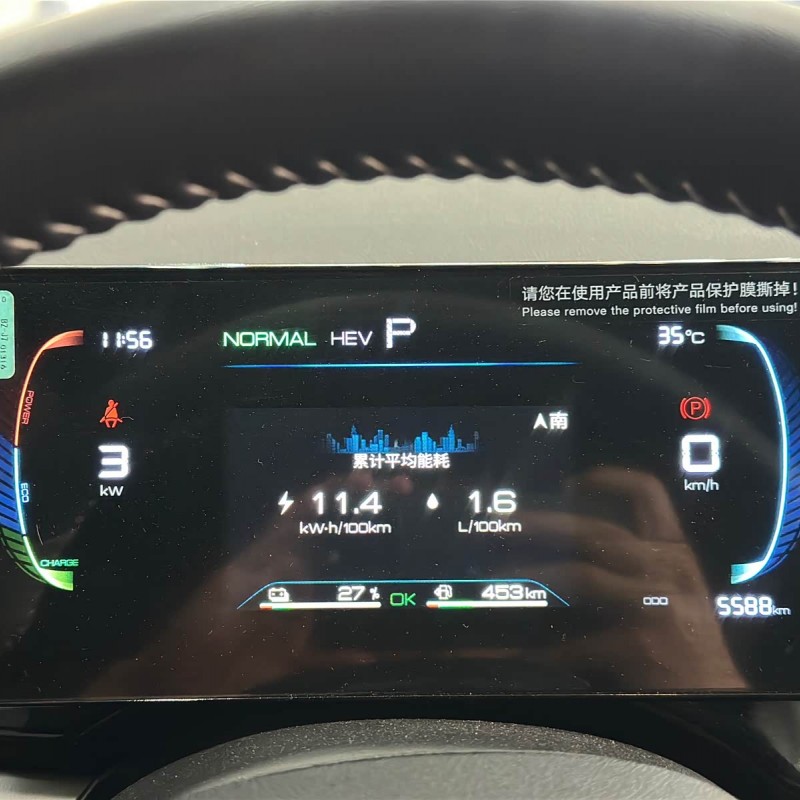

| LCD Instrument size | ●8.8 inches |
| Instrument panel screen material | ●LCD |
| Interior rearview mirror function | ●Manual anti-glare |
| In-car charging | |
|---|---|
| Multimedia/charging interface | ●USB |
| Number of USB/Type-C interfaces | ●2 front seats/2 back seats |
| USB/Type-C maximum charging power | ●10W |
| Mobile phone wireless charging function | ●Front row |

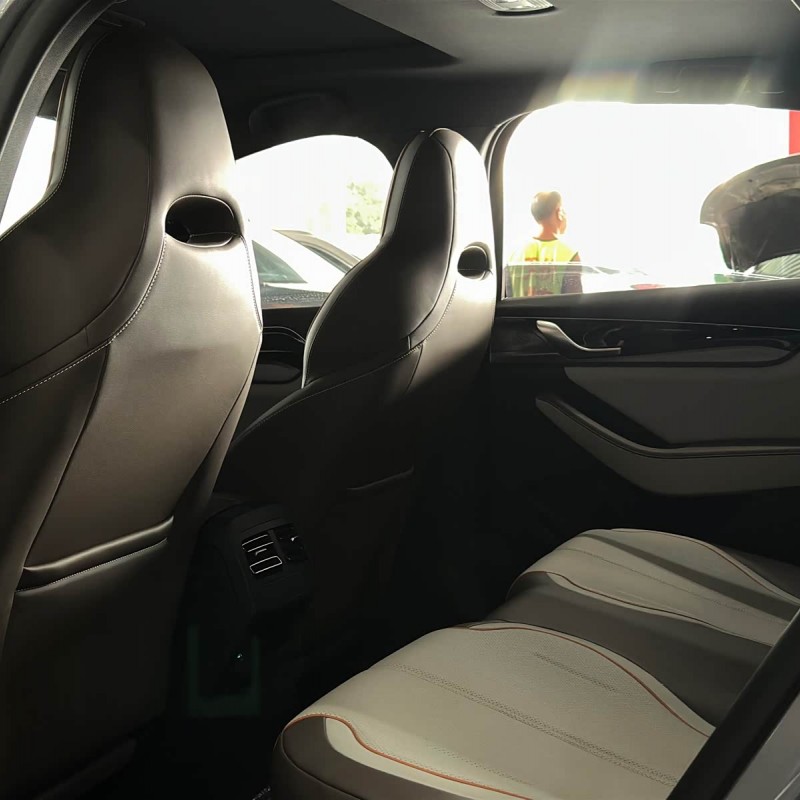

| Seat configuration | |
|---|---|

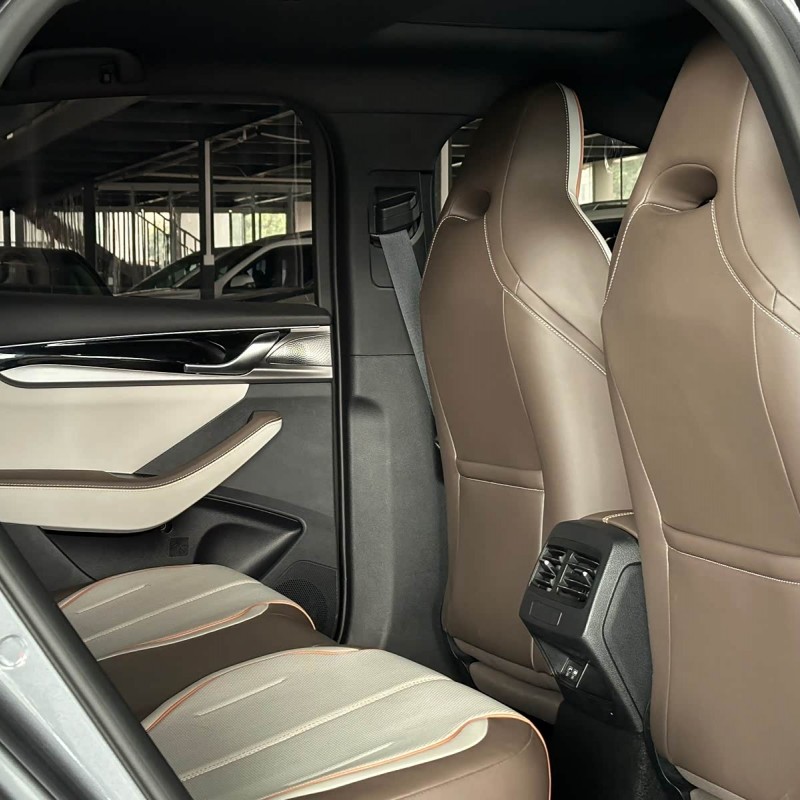

| Seat material | ●Imitation leather |
| Sports style seats | ● |
| Main seat adjustment method | ●Fore and aft adjustment ●Backrest adjustment ●Height adjustment (2-way) |
| Passenger seat adjustment method | ●Fore and aft adjustment ●Backrest adjustment |
| Driver/passenger seat electric adjustment | Driver● / passenger● |
| Front seat function | ●Heating |
| Electric seat memory function | - |
| Adjustable buttons for the rear passenger seat | - |
| Second row seat adjustment | - |
| Rear seat folding form | ●Proportional folding |
| Front/rear center armrest | Front● / rear● |
| Rear cup holder | ● |
| Audio/Interior Lighting | |
|---|---|
| Speaker Brand Name | - |
| Number of Speakers | ●8 Speakers |
| Interior Ambient Lighting | ●Multi-color |
| Air conditioning/refrigerator | |
|---|---|
| Air conditioning temperature control method | ●Automatic air conditioning |
| Rear independent air conditioning | - |

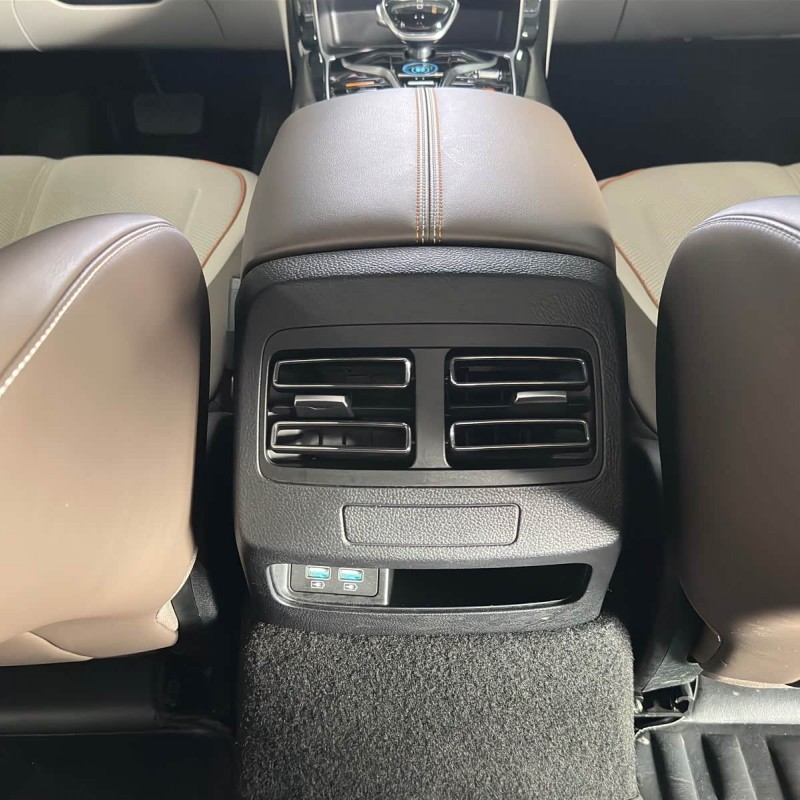

| Rear seat air outlet | ● |
| Temperature zone control | ● |
| Car air purifier | - |
| PM2.5 filter device in the car | ● |
